ABAP - BDC 실습(자재 마스터 변경)



1. T-CD : SHDB에서 자재 변경 과정을 레코딩

위의 내용은 자재를 MM02에서 수정한 레코드인데,

내부생산기간을

MARC-DZEIT=12로 변경했다.





2. PAI에 BDC가 구동되는 버튼을 세팅한다.



* PAI 파트

*&---------------------------------------------------------------------*
*&      MODULE  USER_COMMAND_0100  INPUT
*&---------------------------------------------------------------------*
*       TEXT
*----------------------------------------------------------------------*
MODULE USER_COMMAND_0100 INPUT.
CASE OK_CODE.

  WHEN 'FC_ZERO'.
    PERFORM DZEIT_ZERO.
  ENDCASE.

CLEAR : OK_CODE.
ENDMODULE.



* BDC 버튼 내부

*&---------------------------------------------------------------------*
*&      FORM  DZEIT_ZERO
*&---------------------------------------------------------------------*
*       TEXT
*----------------------------------------------------------------------*
FORM DZEIT_ZERO.

DATA : P_CONFIRM,
             LV_ERROR TYPE STRING.

DATA : LT_MESSAGE TYPE BAPIRET2_TAB,
             LV_MESSAGE TYPE STRING.

DATA : LV_S TYPE I,
              LV_F TYPE I.

CLEAR : LV_ERROR.

CLEAR : P_CONFIRM.

CALL FUNCTION 'POPUP_TO_CONFIRM'
EXPORTING
TITLEBAR                   = 'CAUTION'
      TEXT_QUESTION      = '일괄 처리하시겠습니까?'
     TEXT_BUTTON_1       = '네'(001)
     ICON_BUTTON_1        = 'ICON_CHECKED'
     TEXT_BUTTON_2               = '아니요'(002)
     ICON_BUTTON_2               = 'ICON_INCOMPLETE'
     DEFAULT_BUTTON              = '2'
     DISPLAY_CANCEL_BUTTON       = ''
IMPORTING
     ANSWER                      = P_CONFIRM "1:CONTINEW / 2:CANCEL
.

IF SY-SUBRC <> 0.
  MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
  WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.

IF P_CONFIRM <> '1'.
MESSAGE S170 DISPLAY LIKE 'E' WITH TEXT-E01. "취소했습니다
ELSE.
LOOP AT GT_0100_DATA ASSIGNING FIELD-SYMBOL(<FS_0100_DATA>).

"BDC 실습 시작
CALL FUNCTION 'ZFM_CHANGE_PROD_PERIOD'
EXPORTING
          IS_MM_DATA  = <FS_0100_DATA>
TABLES
          ET_MSG         = LT_MESSAGE[]
EXCEPTIONS
          ERROR_MESSAGE = 1.

IF SY-SUBRC EQ 1.

MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4
INTO LV_MESSAGE.

APPEND INITIAL LINE TO LT_MESSAGE[]
ASSIGNING FIELD-SYMBOL(<FS_MESSAGE>).
        <FS_MESSAGE>-TYPE     = 'E'.
        <FS_MESSAGE>-ID       = SY-MSGID.
        <FS_MESSAGE>-NUMBER   = SY-MSGNO.
        <FS_MESSAGE>-MESSAGE  = LV_MESSAGE.
ENDIF.
      <FS_0100_DATA>-BAPI_MSG[] = LT_MESSAGE[].
IF <FS_0100_DATA>-BAPI_MSG[] IS NOT INITIAL.
        <FS_0100_DATA>-STATUS  = ZCMCL_ICON=>GC_ERROR.
        <FS_0100_DATA>-MESSAGE = <FS_0100_DATA>-BAPI_MSG[ 1 ]-MESSAGE.
ADD 1 TO LV_F. "실패 라인수
ELSE.
        <FS_0100_DATA>-STATUS    = ZCMCL_ICON=>GC_LED_GREEN.
ADD 1 TO LV_S. "성공 라인수
ENDIF.
ENDLOOP.

MESSAGE S332 WITH LV_S LV_F. "성공 : & | 실패 : &
      "BDC 실습 끝

*   GO_0100_ALV->SET_OPTIMIZE_WIDTH( ).
*   GO_0100_ALV->REFRESH( ).
ENDIF.
ENDFORM.



3. 콜펑션 내부

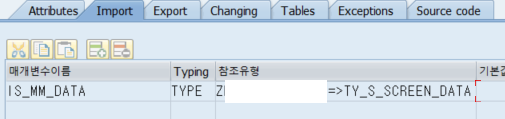

3-1. 임포트 변수 선언



3-2. 테이블 선언



3-3. 내부 소스코드

FUNCTION ZFM_CHANGE_PROD_PERIOD.
*"----------------------------------------------------------------------
*"*"Local interface:
*"  IMPORTING
*"     REFERENCE(IS_MM_DATA) TYPE  클래스=>TY_S_SCREEN_DATA
*"  TABLES
*"      ET_MSG TYPE  BAPIRET2_TAB
*"----------------------------------------------------------------------
  ET_MSG[] =  Z클래스=>CHANGE_MATERIAL_DZEIT( IS_MM_DATA ).
ENDFUNCTION.



3-4. 메소드 내부 코드

메소드 설명

메소드 매개변수



 METHOD CHANGE_MATERIAL_DZEIT.

"PARAMETERS
DATA : LT_BDCDATA TYPE TABLE OF BDCDATA.

FIELD-SYMBOLS : <FS_BDCDATA> LIKE LINE OF LT_BDCDATA[].

"자재번호
APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-PROGRAM    = 'SAPLMGMM'.
    <FS_BDCDATA>-DYNPRO     = '0060'.
    <FS_BDCDATA>-DYNBEGIN   = 'X'.

    APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'BDC_CURSOR'.
    <FS_BDCDATA>-FVAL       = 'RMMG1-MATNR'.

APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'BDC_OKCODE'.
    <FS_BDCDATA>-FVAL       = '=ENTR'.

    APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'RMMG1-MATNR'.
    <FS_BDCDATA>-FVAL       = IS_MM_DATA-MATNR.
CONDENSE <FS_BDCDATA>-FVAL.

"전체뷰 선택
    APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-PROGRAM    = 'SAPLMGMM'.
    <FS_BDCDATA>-DYNPRO     = '0070'.
    <FS_BDCDATA>-DYNBEGIN   = 'X'.

    APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'BDC_CURSOR'.
    <FS_BDCDATA>-FVAL       = 'MSICHTAUSW-DYTXT(01)'.
    APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'BDC_OKCODE'.
    <FS_BDCDATA>-FVAL       = '=SELA'.

" 전체뷰 선택 후 확인
    APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-PROGRAM    = 'SAPLMGMM'.
    <FS_BDCDATA>-DYNPRO     = '0070'.
    <FS_BDCDATA>-DYNBEGIN   = 'X'.

APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'BDC_CURSOR'.
    <FS_BDCDATA>-FVAL       = 'MSICHTAUSW-DYTXT(01)'.

APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'BDC_OKCODE'.
    <FS_BDCDATA>-FVAL       = '=ENTR'.

"플랜트 선택
APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-PROGRAM    = 'SAPLMGMM'.
    <FS_BDCDATA>-DYNPRO     = '0080'.
    <FS_BDCDATA>-DYNBEGIN   = 'X'.

APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'BDC_CURSOR'.
    <FS_BDCDATA>-FVAL       = 'RMMG1-WERKS'.

    APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'BDC_OKCODE'.
    <FS_BDCDATA>-FVAL       = '=ENTR'.

APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'RMMG1-WERKS'.
    <FS_BDCDATA>-FVAL       = IS_MM_DATA-PLWRK.
   CONDENSE <FS_BDCDATA>-FVAL.

"MRP2 뷰 선택
APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-PROGRAM    = 'SAPLMGMM'.
    <FS_BDCDATA>-DYNPRO     = '4004'.
    <FS_BDCDATA>-DYNBEGIN   = 'X'.

APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'BDC_OKCODE'.
    <FS_BDCDATA>-FVAL       = '=SP13'.

APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-PROGRAM    = 'SAPLMGMM'.
    <FS_BDCDATA>-DYNPRO     = '4000'.
    <FS_BDCDATA>-DYNBEGIN   = 'X'.

    APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'BDC_OKCODE'.
    <FS_BDCDATA>-FVAL       = '/00'.

APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'BDC_CURSOR'.
    <FS_BDCDATA>-FVAL       = 'MARC-DZEIT'.

APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'MARC-DZEIT'.
    <FS_BDCDATA>-FVAL       = 12.    "원하는 값 넣기. 예시는 12일.
CONDENSE <FS_BDCDATA>-FVAL.

APPEND INITIAL LINE TO LT_BDCDATA[] ASSIGNING <FS_BDCDATA>.
    <FS_BDCDATA>-FNAM       = 'BDC_OKCODE'.
    <FS_BDCDATA>-FVAL       = '=BU'.


" 호출
DATA :      LS_OPTION  TYPE CTU_PARAMS,
      LT_MESSAGE TYPE TAB_BDCMSGCOLL.

    LS_OPTION-DISMODE  = 'N'.
    LS_OPTION-UPDMODE  = 'S'.

    CALL TRANSACTION 'MM02' USING LT_BDCDATA[]
    MESSAGES INTO LT_MESSAGE[]          OPTIONS FROM LS_OPTION.

CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
WAIT = 'X'.

DELETE LT_MESSAGE[] WHERE MSGTYP NE 'E'.

"메시지 처리
    RT_MESSAGE[] = ZCMCL_UTIL=>CONVERT_MESSAGE( LT_MESSAGE[] ).

ENDMETHOD.



3-5. 그 외

3-5-1. ZCMCL_UTIL=>CONVERT_MESSAGE

  METHOD convert_message.
    CHECK it_message[] IS NOT INITIAL.
    LOOP AT it_message[] ASSIGNING FIELD-SYMBOL(<fs_message>).
      APPEND INITIAL LINE TO rt_data[] ASSIGNING FIELD-SYMBOL(<fs_data>).
      MOVE <fs_message>-msgtyp  TO <fs_data>-type.
      MOVE <fs_message>-msgid   TO <fs_data>-id.
      MOVE <fs_message>-msgnr   TO <fs_data>-number.
      MOVE <fs_message>-msgspra TO <fs_data>-parameter.
      MOVE <fs_message>-msgv1   TO <fs_data>-message_v1.
      MOVE <fs_message>-msgv2   TO <fs_data>-message_v2.
      MOVE <fs_message>-msgv3   TO <fs_data>-message_v3.
      MOVE <fs_message>-msgv4   TO <fs_data>-message_v4.

      CALL FUNCTION 'FORMAT_MESSAGE'
        EXPORTING
          id        = <fs_data>-id
          no        = <fs_data>-number
          v1        = <fs_data>-message_v1
          v2        = <fs_data>-message_v2
          v3        = <fs_data>-message_v3
          v4        = <fs_data>-message_v4
        IMPORTING
          msg       = <fs_data>-message
        EXCEPTIONS
          not_found = 1
          OTHERS    = 2.
      IF sy-subrc <> 0.
        MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
          WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
      ENDIF.
    ENDLOOP.
  ENDMETHOD.

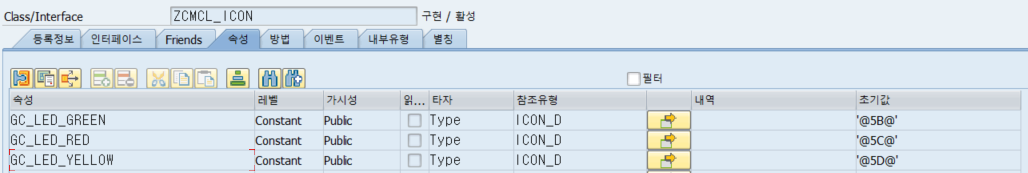

3-5-2. ZCMCL_ICON=>GC_LED_GREEN.



4. BDC 파라미터 정리

* BDC 처리모드(DISMODE)

- A : 모든 화면 조회

- E : 오류 조회

- N : 백그라운드 처리

- P : 백그라운드 처리. 디버깅 가능.



* BDC 트랜잭션 모드(UPDMODE)

- L : 로컬

- S : 동기

- A : 비동기



프로그램을 생성 후 디버깅하면서 오류를 확인할 때는

    LS_OPTION-DISMODE  = 'A' 혹은 'E'
    LS_OPTION-UPDMODE  = 'L' 혹은 'A'.(S해도 무방하긴 함.)

위와 같이 처리.



우선 DISMODE를 A로 해서 모든 BDC단계를 눈으로 확인 후

에러가 잔존할 시 E로 처리해 에러가 없어질 때까지 수정.



프로그램을 완성하고 난 후에는 아래와 같이 처리.

    LS_OPTION-DISMODE  = 'N'. "백그라운드 처리 "N->E->A
    LS_OPTION-UPDMODE  = 'S'. "동기 'S'->A->L
